Square D Telemecanique GV2 Starter Replacement Cross Ref.
(US Breakers offering of CHNT Brand UL Listed Direct Aftermarket Replacements)

GV-NS2 UL Listed Replacement Motor Starter Protector Cross Ref

  • Standards: UL508, CSA C22.2, IEC 60947-2, IEC60947-4-1, and CE
  • Rated 600V UL & 690V IEC Covering Current Ranges From 0.16 to 25A
  • 3P hp Rated Motor Starters Include a Manual Disconnect, Cl-10 Ambient Compensated Overload, and Instantaneous Magnet Trip in One Compact Unit.




Series GV NS2 (GV2) Starter Data Sheet

US Breaker

Telemecanique Cross Reference

Allen Bradley Cross Reference



Price

   Part #

Direct

Similar

Similar*

Description

Each

GV-25-NS2-Ax16

GV2-M01

GV2-ME01

140M-C2E-A16

Motor Starter NS2 UL Listed CL-10 Adjusts from .1-.16A replaces GV2M01

$37.48

GV-25-NS2-Ax25

GV2-M02

GV2-ME02

140M-C2E-A25

Motor Starter NS2 UL Listed CL-10 Adjusts from .16-.25 A replaces GV2M02

$37.48

GV-25-NS2-Ax40

GV2-M03

GV2-ME03

140M-C2E-A40

Motor Starter NS2 UL Listed CL-10 Adjusts from .25-.4A replaces GV2M03

$37.48

GV-25-NS2-Ax63

GV2-M04

GV2-ME04

140M-C2E-A63

Motor Starter NS2 UL Listed CL-10 Adjusts from .4- 63A replaces GV2M04

$37.48

GV-25-NS2-A01

GV2-M05

GV2-ME05

140M-C2E-B10

Motor Starter NS2 UL Listed CL-10 Adjusts from .63-1A replaces GV2M05

$37.48

GV-25-NS2-1x6

GV2-M06

GV2-ME06

140M-C2E-B16

Motor Starter NS2 UL Listed CL-10 Adjusts from 1-1.6A replaces GV2M06

$37.48

GV-25-NS2-A2x5

GV2-M07

GV2-ME07

140M-C2E-B25

Motor Starter NS2 UL Listed CL-10 Adjusts from 1.6-2.5A replaces GV2M07

$37.48

GV-25-NS2-A04

GV2-M08

GV2-ME08

140M-C2E-B40

Motor Starter NS2 UL Listed CL-10 Adjusts from 2.5-4A replaces GV2M08

$37.48

GV-25-NS2-A6x3

GV2-M10

GV2-ME10

140M-C2E-B63

Motor Starter NS2 UL Listed CL-10 Adjusts from 4-6.3A replaces GV2M10

$37.48

GV-25-NS2-A10

GV2-M14

GV2-ME14

140M-C2E-C10

Motor Starter NS2 UL Listed CL-10 Adjusts from 6-10A replaces GV2M14

$40.98

GV-25-NS2-A14

GV2-M16

GV2-ME16

140M-C2E-C16 (10-16A)

Motor Starter NS2 UL Listed CL-10 Adjusts from 9-14A replaces GV2M6

$40.98

GV-25-NS2-A18

GV2-M20

GV2-ME20

140M-C2E-C20 (14.5-20A)

Motor Starter NS2 UL Listed CL-10 Adjusts from 13-18A replaces GV2M20

$40.98

GV-25-NS2-A23

GV2-M21

GV2-ME21

140M-C2E-C25 (18-25A)

Motor Starter NS2 UL Listed CL-10 Adjusts from 17-23A replaces GV2M21

$40.98

GV-25-NS2-A25

GV2-M22

GV2-ME22

140M-C2E-C25 (18-25A)

Motor Starter NS2 UL Listed CL-10 Adjusts from 20-25A replaces GV2M22

$40.98

  • *Please note that Allen Bradley has a rotary on/off switch whereas we use a push button. Also make sure that the Amperage range is correct for Allen Bradley Cross References for your application.

  • Series GV NS2 (GV2) Starter Accessories

    US Breaker- Telemecanique Cross Reference Allen Bradley
    Cross Reference
      Price
      Part # Direct Similar Similar Description Each
    GV-NS2-AE11 GV2-AE11 GV-AE11 140M-C-AFA11 NS2 Manual Motor Starter 1NO/1NC Top Mount Aux Cont $9.99
    GV-NS2-AE20 GV2-AE20 GV-AE20 140M-C-AFA20 NS2 Manual Motor Starter 2NO Top Mount Aux Cont $9.99

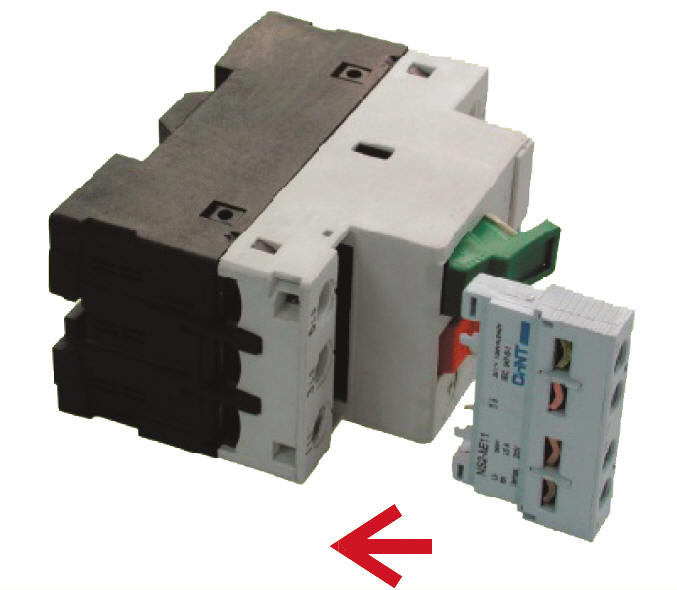

    GV-NS2-AU11 GV2-AN11 GV-AN11 140M-C-ASA11 NS2 Manual Motor Starter 1NO/1NC Side Mount Aux Cont $12.49
    GV-NS2-AU20 GV2-AN20 GV-AN20 140M-C-ASA20 NS2 Manual Motor Starter 2NO Side Mount Aux Cont $12.49
    GV-NS2-UV110 GV2-AU116 GV-AU115 - NS2 Manual Motor Starter - 127Vac UV 60hz $23.79
    GV-NS2-SH110 GV2-AS116 GV-AS115 - NS2 Manual Motor Starter - 127Vac Shunt Trip 60hz $23.79
    GV-NS2-SH220 GV2-AS226 GV-AS226 - NS2 Manual Motor Starter - 240Vac Shunt Trip 60hz $23.79
    GV-NS2-FA1001 GV2-AD1001 GV-AD1001 - NS2 Manual Motor Starter 1NO Fault Signal Contact + 1NC Auxiliary Contact $14.96
    GV-NS2-FA1010 GV2-AD1010 GV-AD1010 - NS2 Manual Motor Starter 1NO Fault Signal Contact + 1NO Auxiliary Contact $14.96
    GV-NS2-FA0101 GV2-AD0101 GV-AD0101 - NS2 Manual Motor Starter 1NC Fault Signal Contact + 1NC Auxiliary Contact $14.96
    GV-NS2-MC GV2MC02 GV2-MC02 - NS2 Manual Motor Starter IP55 Waterproof Mounting Box $19.95
    GV-NS2-MC01 - - - NS2 Manual Motor Starter IP55 Enclosure with Emergency Stop Pushbutton   $23.93

    Series GV NS2 (GV2) Starter Technical Data

      Series GV NS2 Type -25/ 0.16 -25/ 0.25 -25/ 0.4 -25/ 0.63 -25/ 1 -25/ 1.6 -25/ 2.5 -25/ 4 -25/ 6.3 -25/ 10 -25/ 14 -25/ 18 -25/ 23 -25/ 25
    Thermal Setting - .1 - .16 A .16 - .25 A .25 - .4 A .4 - .63 A .63 - 1 A 1 - 1.6 A 1.6 - 2.5 A 2.5 - 4 A 4 - 6.3 A 6 - 10 A 9 - 14 A 13 - 18 A 17 - 23 A 20 - 25 A

       Maximum UL

          Hp Rating - 1Ph

    115V - - - - - - - 1/8 Hp 1/4 Hp 1/2 Hp 3/4 Hp 1 Hp 1 1/2 Hp 2 Hp
    230V - - - - - 1/10 Hp 1/6 Hp 1/3 Hp 1/2 Hp 1 1/2 Hp 2 Hp 3 Hp 3 Hp 3 Hp

       Maximum UL

       Hp Rating - 3Ph

    200V - - - - - - 1/2 Hp 3/4 Hp 1 1/2 Hp 2 Hp 3 Hp 5 Hp 5 Hp 5 Hp
    230V - - - - - - 1/2 Hp 1 Hp 1 1/2 Hp 3 Hp 3 Hp 5 Hp 7 1/2 Hp 7 1/2 Hp
    460V - - - - 1/2 Hp 3/4 Hp 1 Hp 2 Hp 3 Hp 5 Hp 10 Hp 10 Hp 15 Hp 15 Hp
    575V - - - - 1/2 Hp 1 Hp 1 1/2 Hp 3 Hp 5 Hp 7 1/2 Hp 10 Hp 15 Hp 20 Hp 20 Hp

    Short Circuit Icu

         (x1000 without fuses)

    IEC-230V 100 100 100 100 100 100 100 100 100 100 100 100 50 50
    IEC-500V 100 100 100 100 100 100 100 100 50 10 6 6 4 4
    UL-600V 5 5 5 5 5 5 5 5 5 5 5 5 5 5
    Dimensions (in) Width  1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.8
    Height 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6
    Depth  2.6 2.6 2.6 2.6 2.6 2.6 2.6 2.6 2.6 2.6 2.6 2.6 2.6 2.6
    • Telemecanique part numbers are provided to assist in product selection. Proper engineering evaluation for each application remains a customer responsibility.
    • Series GV NS2 Accessories are intended and UL listed for use with Series GV NS2 Contactors.

    Individual Product Datasheets

  • GV2-M01 (GV2M01)
  • GV2-M02 (GV2M02)
  • GV2-M03 (GV2M03)
  • GV2-M04 (GV2M04)
  • GV2-M05 (GV2M05)
  • GV2-M06 (GV2M06)
  • GV2-M07 (GV2M07)
  • GV2-M08 (GV2M08)
  • GV2-M10 (GV2M10)
  • GV2-M14 (GV2M14)
  • GV2-M16 (GV2M16)
  • GV2-M20 (GV2M20)
  • GV2-M21 (GV2M21)
  • GV2-M22 (GV2M22)


  • Telemecanique GV2 Starter Catalog Page PDF
