Square D Telemecanique LC1 Contactor Replacement Cross Ref.
(US Breaker Brand UL Listed Direct Aftermarket Replacements)

Contactor Cross Reference Charts:









3 Pole Contactors
Telemecanique LC1 - Obsolete Part # Coil Voltage US Breaker Brand Direct Replacement Aux
NO		 Aux
NC		 Amps AC-3 Amps AC-1
 Hp 3 Ph 240V Hp 3 Ph 460V Price Each
LC1D0910 - B7 24Vac   NC1D0910 -V24 1 0 9 20 3 5 $17.48
LC1D0910 - G6 120Vac    NC1D0910 -V120 9 20 3 5 $17.48
LC1D0910 - U6 240Vac    NC1D0910 -V240 9 20 3 5 $17.48
LC1D0901 - B7 24Vac    NC1D0901 -V24 0 1 9 20 3 5 $17.48
LC1D0901 - G6 120Vac    NC1D0901 -V120 9 20 3 5 $17.48
LC1D0901 - U6 240Vac    NC1D0901 -V240 9 20 3 5 $17.48
LC1D1210 - B7 24Vac    NC1D1210 -V24 1 0 12 20 5 7.5 $19.95
LC1D1210 - G6 120Vac    NC1D1210 -V120 12 20 5 7.5 $19.95
LC1D1210 - U6 240Vac    NC1D1210 -V240 12 20 5 7.5 $19.95
LC1D1201 - B7 24Vac    NC1D1201 -V24 0 1 12 20 5 7.5 $19.95
LC1D1201 - G6 120Vac    NC1D1201 -V120 12 20 5 7.5 $19.95
LC1D1201 - U6 240Vac    NC1D1201 -V240 12 20 5 7.5 $19.95
LC1D1810 - B7 24Vac    NC1D1810 -V24 1 0 18 32 7.5 10 $27.48
LC1D1810 - G6 120Vac    NC1D1810 -V120 18 32 7.5 10 $27.48
LC1D1810 - U6 240Vac    NC1D1810 -V240 18 32 7.5 10 $27.48
LC1D1801 - B7 24Vac    NC1D1801 -V24 0 1 18 32 7.5 10 $27.48
LC1D1801 - G6 120Vac    NC1D1801 -V120 18 32 7.5 10 $27.48
LC1D1801 - U6 240Vac    NC1D1801 -V240 18 32 7.5 10 $27.48

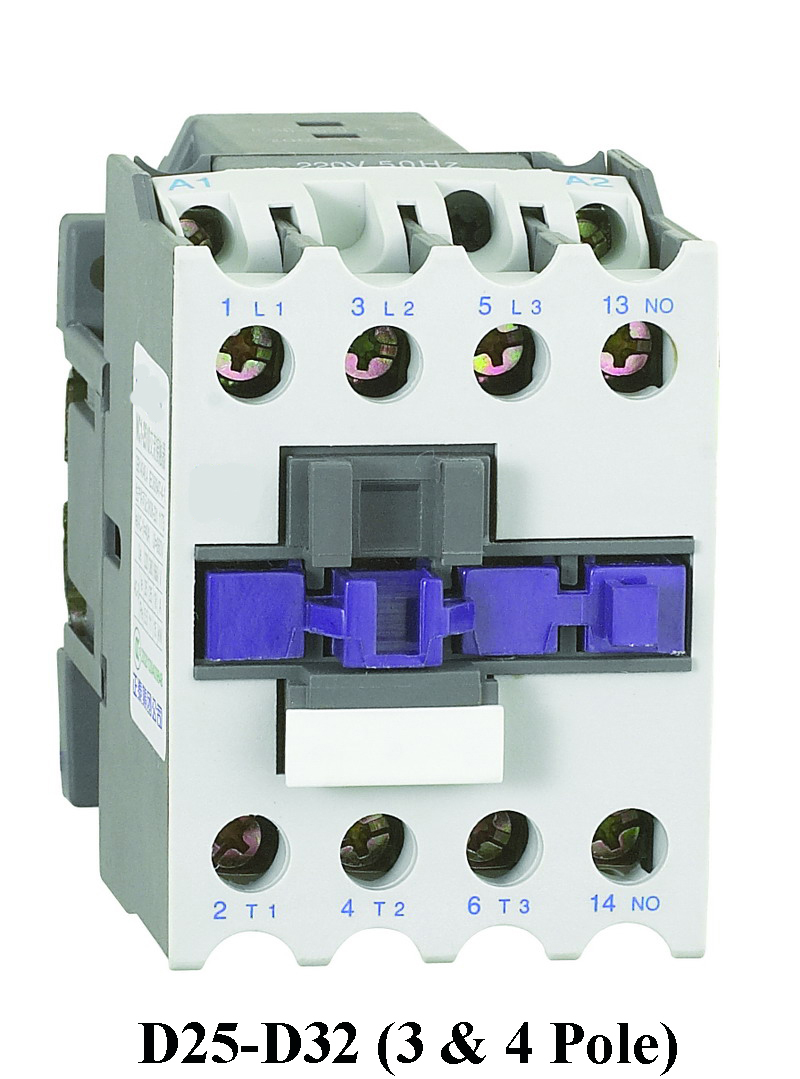

LC1D2510 - B7 24Vac    NC1D2510-V24 1 0 25 40 10 15 $30.06
LC1D2510 - G6 120Vac    NC1D2510 -V120 25 40 10 15 $30.06
LC1D2510 - U6 240Vac    NC1D2510 -V240 25 40 10 15 $30.06
LC1D2501 - B7 24Vac    NC1D2501-V24 0 1 25 40 10 15 $30.06
LC1D2501 - G6 120Vac    NC1D2501 -V120 25 40 10 15 $30.06
LC1D2501 - U6 240Vac    NC1D2501 -V240 25 40 10 15 $30.06
LC1D3210 - B7 24Vac    NC1D3210 -V24 1 0 32 50 15 20 $38.71
LC1D3210 - G6 120Vac    NC1D3210 -V120 32 50 15 20 $38.71
LC1D3210 - U6 240Vac    NC1D3210 -V240 32 50 15 20 $38.71
LC1D3201 - B7 24Vac    NC1D3201 -V24 0 1 32 50 15 20 $38.71
LC1D3201 - G6 120Vac    NC1D3201 -V120 32 50 15 20 $38.71
LC1D3201 - U6 240Vac    NC1D3201 -V240 32 50 15 20 $38.71
LC1D4011 - B7 24Vac    NC1D4011 -V24 1 1 40 60 20 25 $49.99
LC1D4011 - G6 120Vac    NC1D4011 -V120 40 60 20 25 $49.99
LC1D4011 - U6 240Vac    NC1D4011 -V240 40 60 20 25 $49.99
LC1D5011 - B7 24Vac    NC1D5011 -V24 1 1 50 80 20 30 $67.49
LC1D5011 - G6 120Vac    NC1D5011 -V120 50 80 20 30 $67.49
LC1D5011 - U6 240Vac    NC1D5011 -V240 50 80 20 30 $67.49
LC1D6511 - B7 24Vac    NC1D6511 -V24 1 1 65 80 25 40 $77.52
LC1D6511 - G6 120Vac    NC1D6511 -V120 65 80 25 40 $77.52
LC1D6511 - U6 240Vac    NC1D6511 -V240 65 80 25 40 $77.52
LC1D8011 - B7 24Vac    NC1D8011 -V24 1 1 80 95 30 40 $88.94
LC1D8011 - G6 120Vac    NC1D8011 -V120 80 95 30 40 $88.94
LC1D8011 - U6 240Vac    NC1D8011 -V240 80 95 30 40 $88.94
LC1D9511 - B7 24Vac    NC1D9511 -V24 1 1 95 110 30 50 $109.28
LC1D9511 - G6 120Vac    NC1D9511 -V120 95 110 30 50 $109.28
LC1D9511 - U6 240Vac    NC1D9511 -V240 95 110 30 50 $109.28



Additional Resources
LC1D
Matching Overload Relays F115 - F265 Contactors DOL Starter Enclosure

How to Find Your Control Coil Voltage Contactor Wiring
Diagrams		 Starter Selection
Tool by Motor Hp
  • Products are certified to global standards including UL, CSA and IEC/CE.
  • Telemecanique part numbers are provided to assist product selection. US Breaker represents its own UL Listed contactors & overload relays and is not associated with Schneider Electric. Proper engineering evaluation is required for each customer application. Feel fee to call if we can help.
  • US Breaker accessories and overload relays are UL listed for use with NC1 contactors.  We recommend replacing accessories with contactors.


4 Pole Contactors
Telemecanique LC1 Coil US Breaker Brand Power Poles Amps Price
Obsolete Part # Voltage Direct Replacement NO NC AC-3 AC-1
 Each
LC1D12004 - B7 24Vac    NC1D1204 -V24 4 0 12 20 $29.96
LC1D12004 - G6 120Vac    NC1D1204 -V120 12 20 $29.96
LC1D12004 - U6 240Vac    NC1D1204 -V240 12 20 $29.96
LC1D12008 - B7 24Vac    NC1D1208 -V24 2 2 12 20 $29.96
LC1D12008 - G6 120Vac    NC1D1208 -V120 12 20 $29.96
LC1D12008 - U6 240Vac    NC1D1208 -V240 12 20 $29.96
LC1D25004 - B7 24Vac    NC1D2504-V24 4 0 25 40 $49.90
LC1D25004 - G6 120Vac    NC1D2504 -V120 25 40 $49.90
LC1D25004 - U6 240Vac    NC1D2504 -V240 25 40 $49.90
LC1D25008 - B7 24Vac    NC1D2508-V24 2 2 25 40 $49.90
LC1D25008 - G6 120Vac    NC1D2508 -V120 25 40 $49.90
LC1D25008 - U6 240Vac    NC1D2508 -V240 25 40 $49.90
LC1D40004 - B7 24Vac    NC1D6504 -V24 4 0 65 80 $119.28
LC1D40004 - G6 120Vac    NC1D6504 -V120 65 80 $119.28
LC1D40004 - U6 240Vac    NC1D6504 -V240 65 80 $119.28
LC1D40008 - B7 24Vac    NC1D6508 -V24 2 2 65 80 $119.28
LC1D40008 - G6 120Vac    NC1D6508 -V120 65 80 $119.28
LC1D40008 - U6 240Vac    NC1D6508 -V240 65 80 $119.28
LC1D65004 - B7 24Vac    NC1D6504 -V24 4 0 65 80 $119.28
LC1D65004 - G6 120Vac    NC1D6504 -V120 65 80 $119.28
LC1D65004 - U6 240Vac    NC1D6504 -V240 65 80 $119.28
LC1D65008 - B7 24Vac    NC1D6508 -V24 2 2 65 80 $119.28
LC1D65008 - G6 120Vac    NC1D6508 -V120 65 80 $119.28
LC1D65008 - U6 240Vac    NC1D6508 -V240 65 80 $119.28
LC1D80004 - B7 24Vac    NC1D9504 -V24 4 0 95 110 $166.97
LC1D80004 - G6 120Vac    NC1D9504 -V120 95 110 $166.97
LC1D80004 - U6 240Vac    NC1D9504 -V240 95 110 $166.97
LC1D80008 - B7 24Vac    NC1D9508 -V24 2 2 95 110 $166.97
LC1D80008 - G6 120Vac    NC1D9508 -V120 95 110 $166.97
LC1D80008- U6 240Vac    NC1D9508 -V240 95 110 $166.97

NC1 09 - 95 Front Mount Aux Contact
Telemecanique Part Number Total Contacts NO NC

US Breaker Brand Part #
  LA1DN11 2 1 1 NC-F4-11
  LA1DN20 2 0 NC-F4-20
  LA1DN02 0 2 NC-F4-02
  LA1DN40 4 4 0 NC-F4-40
  LA1DN31 3 1 NC-F4-31
  LA1DN22 2 2 NC-F4-22
  LA1DN04 0 4 NC-F4-04

NC1 09 - 95 Side Mount Aux Contact
  LA8DN11 2 1 1 NC-F1-11C

NC1 Reversing Interlock to Replace LC2D Set
Telemecanique Part Number For Contactor Frame Sizes NC1D    US Breaker    Part Number
LA9D9978 09, 12, 18, 25 & 32 NC-MI-09-32A
 LA9D50978 40 & 65 NC-MI-40-65A
LA9D80978 80 & 95 NC-MI-80-95A

Front Mount Time Delay Blocks - All Sizes
Telemecanique Part Number For Contactor Frame Sizes NC1D 09 - 95    US Breaker    Part Number
LA2DT2 On-Delay 0 - 30 sec NC-F5-T2
LA3DR2 Off-Delay 0 - 30 sec NC-F5-D2





Individual Product Datasheets

  • LC1D0910 (LC1 D09 10)
  • LC1D0901 (LC1 D09 01)
  • LC1D1210 (LC1 D12 10)
  • LC1D1201 (LC1 D12 01)
  • LC1D1810 (LC1 D18 10)
  • LC1D1801 (LC1 D18 01)
    		•
  • LC1D2510 (LC1 D25 10)
  • LC1D2501 (LC1 D25 01)
  • LC1D3210 (LC1 D32 10)
  • LC1D3201 (LC1 D32 01)
  • LC1D4011 (LC1 D40 11)
  • LC1D5011 (LC1 D50 11)
    		•
  • LC1D6511 (LC1 D65 11)
  • LC1D8011 (LC1 D80 11)
  • LC1D12004 (LC1 D12004)
  • LC1D12008 (LC1 D12008)
  • LC1D25004 (LC1 D25004)
  • LC1D25008 (LC1 D25008)
    		•
  • LC1D65004 (LC1 D65004)
  • LC1D65008 (LC1 D65008)
  • LC1D80004 (LC1 D80008)
  • LC1 F115 (LC1F115)
  • LC1 F150 (LC1F150)
  • LC1 F185 (LC1F185)
  • LC1 F265 (LC1F265
    		•



    NC1-D (LC1-D) Catalog Page PDF



    Instructional Videos on YouTube:

  • How to change a Contactor Coil
    		•
  • How to Install A Reversing Mechanical Interlock
    		•

    Free Ground Shipping on orders over $150.00! Stock orders placed by 3PM EST ship same day.



    US Breaker, Inc. provides cross references to our US Breaker brand high quality UL certified products to assist customer selection. Our part number is different unless we are offering an original OEM part. We do not claim ownership of any other company trademark or part number referenced on our website, just fantastic value and service for our customers.
